专业的高温、高压反应器测温综合方案提供商
深耕气流床气化技术领域超30年
Professional Production & Services for Entrained-Flow Gasification Process
关于我们
About Us
昆山优利德能源技术有限公司成立于2006年,前身为德士古气化服务有限公司(该公司由美国德士古公司与中国水煤浆气化及煤化工国家工程研究中心各出资50%共同组建),坐落于经济蓬勃发展的长三角地区昆山市,注册资金1,961.8万元。公司作为高新技术企业,不仅是中石油、中石化、国家能源网内的供应商成员,同时也是上海惠生的合格供应商。公司拥有超过100家用户,并在行业内享有卓越的商誉。公司已构建起一套完备的质量认证与保证体系,成功获得了国际ISO9001质量认证,并且顺利通过了国家防爆电气产品质量监督检验中心的热电偶防爆合格认证。
公司生产国标、美标、欧标等高温热电偶,其中国标WRBB系列高温气流床气化炉测温电偶系经美国德士古公司授权,由我公司引进其先进的高温热电偶专利生产技术,专为各类气流床气化炉用户精心生产制作,共有WRBB-S,WRBB-O,WRBB-G三大系列,分别用于固体(煤、焦)进料、液体(重油)进料和天然气进料的气流床部分氧化(POX)气化炉。
Kunshan Youlide Energy Technology Co., Ltd., founded in 2006 (formerly Texaco Gasification Services Co., Ltd., a 50:50 joint venture between US Texaco and the National Engineering Research Center for Coal-Water Slurry Gasification & Coal Chemical Engineering), is based in Kunshan, Yangtze River Delta. With RMB 19.618 million in registered capital, the company is a high-tech enterprise and a qualified supplier to PetroChina, Sinopec, the National Energy Group, and Shanghai Wison. Serving over 100 clients, we maintain an excellent reputation and hold ISO9001 and explosion-proof certifications for thermocouples.
We manufacture high-temperature thermocouples compliant with GB, ASTM, and EN standards. Our flagship WRBB series—authorized by US Texaco and produced using patented technology, is designed for fluidized bed partial oxidation (POX) gasifiers. Three models are available: WRBB-S for solid feed (coal/coke), WRBB-O for liquid feed (heavy oil), and WRBB-G for natural gas feed.
精益制造
Lean Manufacturing
原料精选:生产起始于原料精选,采用日本进口高纯度刚玉粉(Al₂O₃含量99.7%),确保原材料的高品质,为产品性能奠定基础。
关键烧结工艺:热电偶套管采用特制的专用材料,经过1600℃以上的高温烧结工艺制成。这一烧结过程对产品性能的塑造具有关键性作用,每一个环节均需严格把控。
充足产能支撑:公司拥有先进的生产和检测设备,具备年生产700/台/套的能力,设计产能可达1200台/套/年,稳定的产能能够满足市场的多样需求,出厂合格率达100%。
Premium Raw Materials: Made from Japanese-imported high-purity corundum powder (99.7% Al₂O₃), ensuring high-quality raw materials and laying the foundation for product performance.
Key Sintering Process: Thermocouple sleeves are made from specially formulated materials and sintered at temperatures above 1600°C. This critical process is strictly controlled at every step to ensure product performance.
Robust Production Capacity: Equipped with advanced production and testing equipment, we maintain an annual output of 700 units/sets, with a designed capacity of up to 1,200 units/sets. Our stable capacity ensures reliable supply with a 100% factory pass rate.
服务全球超300套工业装置30年,为工业装置实现安、稳、长、满、优保驾护航
30 Years Serving 300+ Global Industrial Units – Ensuring Safe, Stable, Long-Lasting, Full-Load, and Optimized Operations
国内优质客户群体:客户涵盖中石化、中石油、万化、兖矿等知名企业,深度参与国内煤化工和石油化工行业发展,助力产业升级。
全球广泛应用:凭借先进的技术和可靠的产品质量,我们的产品得到韩国三星BP、日本NPRC、新加坡SSPL和美国等地的众多海外气化装置的认可,已在全球10套以上气流床气化装置中得到应用,彰显了产品的广泛适用性和高度认可度。
Top Domestic Clients: Serving leading enterprises such as Sinopec, PetroChina, Wanhua Chemical, and Yankuang Group, actively supporting the development and upgrading of China’s coal chemical and petrochemical industries.
Worldwide Applications: Leveraging advanced technology and reliable product quality, our thermocouples are recognized by gasification units in South Korea (Samsung BP), Japan (NPRC), Singapore (SSPL), the U.S., and other countries. Applied in over 10 entrained-flow gasification units worldwide, demonstrating broad applicability and high recognition.
我们致力于专业的气流床气化工艺服务
We’re Committed To Providing Professional Entrained-Flow Gasification Solutions
产品与技术创新
Product & Innovation

WRBB 系列产品矩阵
WRBB Series
● S型产品参数:WRBB - S型产品专为煤/固体进料场景设计,耐温可达1750℃,压力等级最高10MPa。其独特的设计能有效适应固体进料气化炉的复杂工况,为精确测温提供可靠保障。
● O型产品参数:WRBB - O型产品适用于重油进料场景,耐温1750℃,压力等级最高10MPa。该型号针对重油的特性进行优化,抗腐蚀性强,可靠性高确保在高温高压且伴有重油的环境下稳定工作。
● G型产品参数:WRBB - G型产品主要应用于天然气环境,同样具备1750℃的耐温能力,压力等级最高10MPa。此型号在氢气等特殊介质环境中,密封性好,安全可靠,展现出卓越的性能,保障测温的准确性。
● WRBB-S: For coal/solid feed | 1750℃, 10MPa max | Adapts to complex conditions, reliable temperature measurement
● WRBB-O: For heavy oil feed | 1750℃, 10MPa max | Excellent corrosion resistance, stable under high temp/pressure
● WRBB-G: For natural gas | 1750℃, 10MPa max | Superior sealing, safe in H₂ etc., accurate temperature measurement

气流床气化炉(热工反应/燃烧器)温度检测解决方案
Temperature Sensing Solution for Entrained-Flow Gasifiers (Thermal Reaction/Combustors)
- 传感器套管具有良好的抗热震性、耐磨和耐腐蚀性
- 传感器外鞘尾长在安装时可根据耐火衬里厚度任意调节
- 法兰与套管为肘关节连接,免除热应力剪切
- 采用耐高温、高压密封技术,无需氮气保护,安全可靠
- 热电偶丝与套管及其他附件集成,现场无需装配
- 在气化炉停车时,可快速更换
- 优良的性能价格比,高质量的售后服务
- Exceptional durability: Excellent resistance to thermal shock, wear, and corrosion
- Flexible installation: Tail length can be adjusted to fit refractory lining thickness
- Stress-free structure: The flange and sleeve are connected via an articulated joint, eliminating thermal-stress shear
- Reliable sealing: High-temperature, high-pressure sealing technology ensures reliable operation without nitrogen protection
- Integrated design: Thermocouple, sleeve, and accessories are pre-assembled—no on-site assembly needed
- Easy maintenance: Allows rapid replacement during gasifier shutdown
- value
- Excellent cost-performance with reliable after-sales support

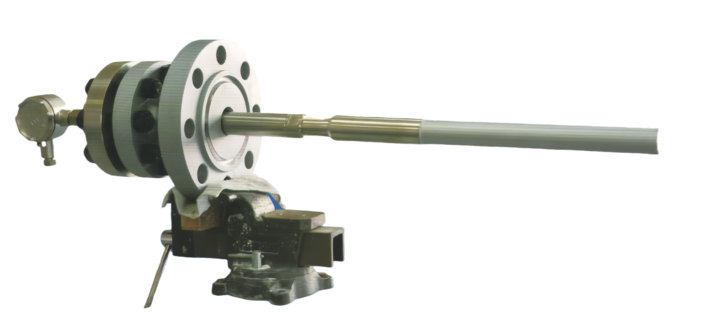

产品结构
Product Structure
● 保护管套组:由高纯刚玉外观、内管和中间的专用浇注料(针对煤进料特点,具有耐侵蚀、抗磨损的优点)在1600℃的高温下共同烧结而成。外面喷涂进口耐高温、防粘结涂料,方便更换电热偶时疏通。内嵌的单晶管的熔点达2050℃,可以提供良好的保护作用。
● 球肘可调延伸套管:球肘延伸套管是我们的专利设计,其独特的结构能够根据所需的热电偶插入深度,随意调节热电偶的长度,已获得中国实用新型专利ZL: 0124485.4。

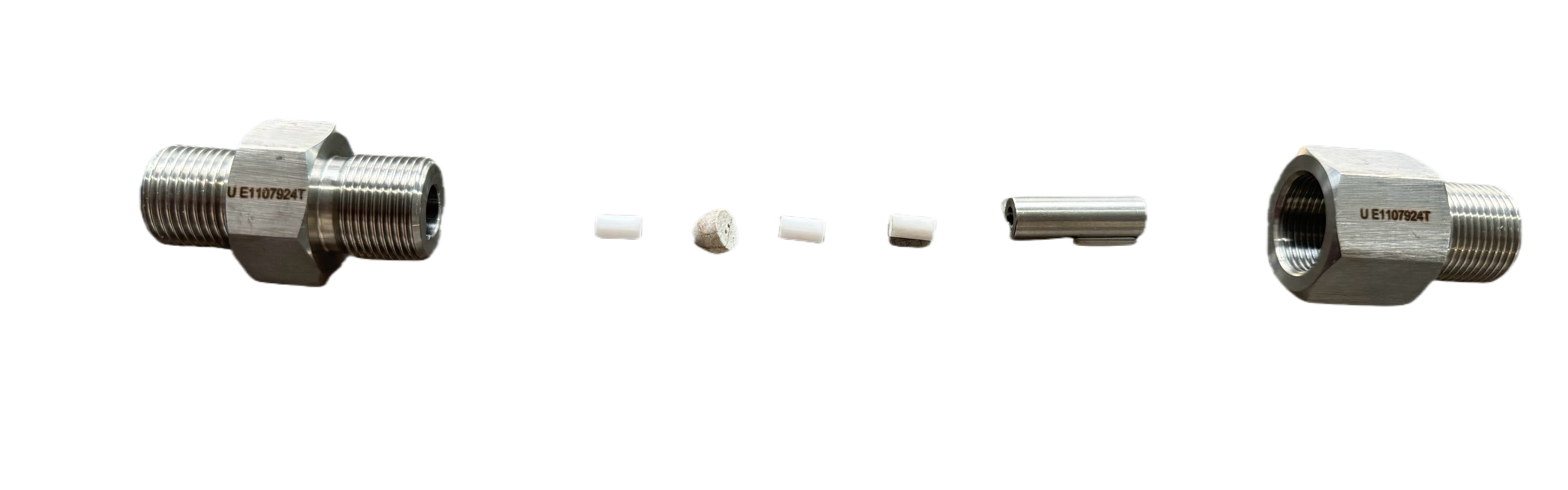

● 密封件及异型法兰:专利的高压密封接头装置,为确保安全,密封附件全部由美国原装进口(国产的密封附件因为材质的硬度过高,不易挤碎,容易漏气,造成重大安全隐患),无需氮气呵护,安全可靠。
● Protection Sleeve Assembly:Sintered at 1600 °C using high-purity corundum inner and outer tubes combined with a coal-feed-optimized refractory castable featuring excellent erosion and wear resistance. The exterior is coated with imported high-temperature anti-adhesion coating for smooth thermocouple replacement. A sapphire single-crystal liner (melting point 2050 °C) provides superior protection.
● Patented Adjustable Ball-Joint Extension Sleeve (ZL:0124485.4): Features a unique ball-joint design allowing flexible length adjustment based on insertion depth.
● Seals & Special-Shaped Flanges:Patented high-pressure sealing assemblies that are 100% US-imported. Domestic alternatives often have excessively high hardness, preventing proper compression and increasing leakage risk. The system operates reliably without nitrogen purging.
材料科学突破
Breakthroughs in Material Science
● 金属陶瓷的致命缺陷——氧化剥落
常见的金属陶瓷(MoSi2)做外保护套管在实际应用中存在严重问题,即在烘炉阶段炉温超过500℃的氧化性气氛中,金属陶瓷会很快氧化、剥落,因而大大降低热电偶的使用寿命。此外由于金属陶瓷管在反应过程极易与煤渣发生粘连,使得热电偶孔清洁困难重重,频繁的敲击也易使热电偶孔处的耐火砖层受损。
● 99.7%高纯刚玉套管的微观奥秘
我公司内、外保护套管的材质均为日本进口的高纯刚玉粉(Al2O3含量99.7%),耐高温达到1750℃以上。尽管按照国家规范,Al2O3纯度在99.0%以上就可以称为刚玉,但我公司的刚玉套管采用99.7%纯度的稀土高纯刚玉管在致密度、 高温性能、抗腐蚀性等各项指标都远远优于普通刚玉管。
● Critical Limitation of MoSi₂ Cermet Sleeves
MoSi₂-based cermet protection tubes suffer rapid oxidation and spalling above 500 °C in oxidizing atmospheres, drastically shortening thermocouple service life. They also tend to bond with coal slag, making channel cleaning difficult and frequent mechanical impact may damage the refractory brickwork.
● Microstructural Superiority of 99.7% High-Purity Corundum
Manufactured from Japanese-imported 99.7% Al₂O₃, the sleeves offer temperature resistance above 1750 °C. Compared with standard ≥99.0% corundum, the enhanced 99.7% material exhibits superior density, high-temperature stability, and corrosion resistance.

专利可调结构
Patented Adjustable Structure
● 球肘延伸套管的独特设计:球肘延伸套管是我们的专利设计,其独特的结构能够根据所需的热电偶插入深度,随意调节热电偶的长度,已获得中国实用新型专利ZL:0124485.4。
● 热应力消除原理剖析:当耐火砖受热膨胀时,普通结构容易受到剪切力而发生断裂。而我们的球肘延伸套管通过特殊的球型肘式连接设计,有效分散和消除热应力,避免套管断裂。
● 实际应用中的卓越表现:我公司生产集成一体的热电偶丝与套管及其他附件,现场无需装配。在实际项目中,专利可调结构的热电偶,面对耐火砖厚度的烧损变化,能灵活调节长度,确保温度测量的准确性和稳定性。
● Unique Design:Patented ball-joint extension sleeve (ZL:0124485.4), enabling continuous adjustment of thermocouple insertion depth
● Thermal Stress Mitigation:Spherical ball-joint design that redistributes thermal stress from refractory expansion, reducing the risk of sleeve fracture.
●Superior Field Performance:Delivered as a fully integrated thermocouple assembly, requiring no on-site installation and allowing length adjustment to maintain precise and stable temperature measurement despite refractory wear.

技术服务
Technical Services
- 完善的质检和质保体系,每根出厂热电偶有质量档案
- 在用户现场进行技术服务和培训
- 离线合成气组份与反应温度反应对应关系量化
- 及时的交货
- 售后跟踪服务和咨询
- Comprehensive QA/QC system & quality file for each delivered thermocouple
- On-site technical support & training
- Quantified correlation between offline syngas composition & reaction temperature
- Timely delivery
- After-sales follow-up & consultation
资质文件
Qualification Documents

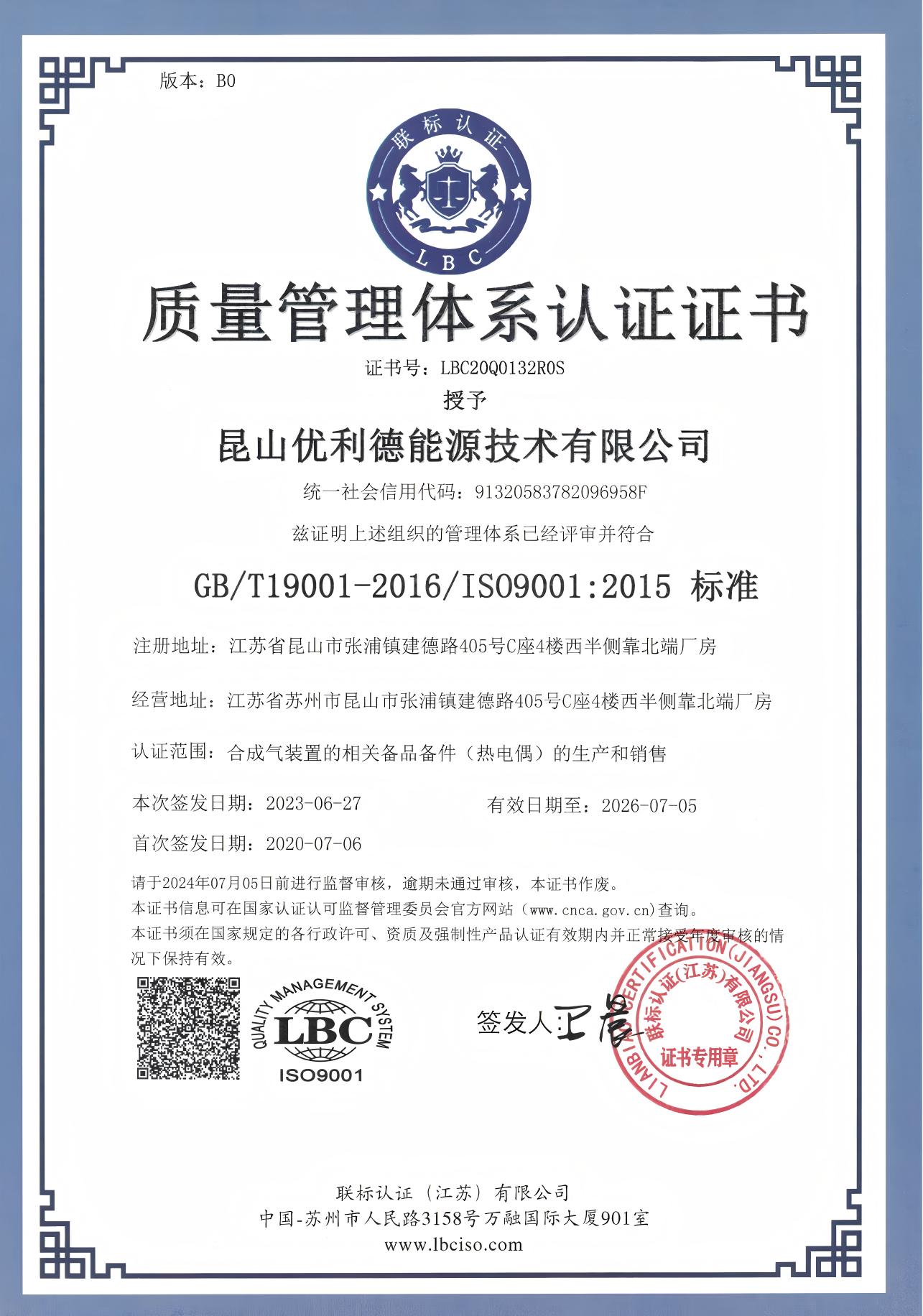

质量管理体系认证证书
Quality Management System Certificate

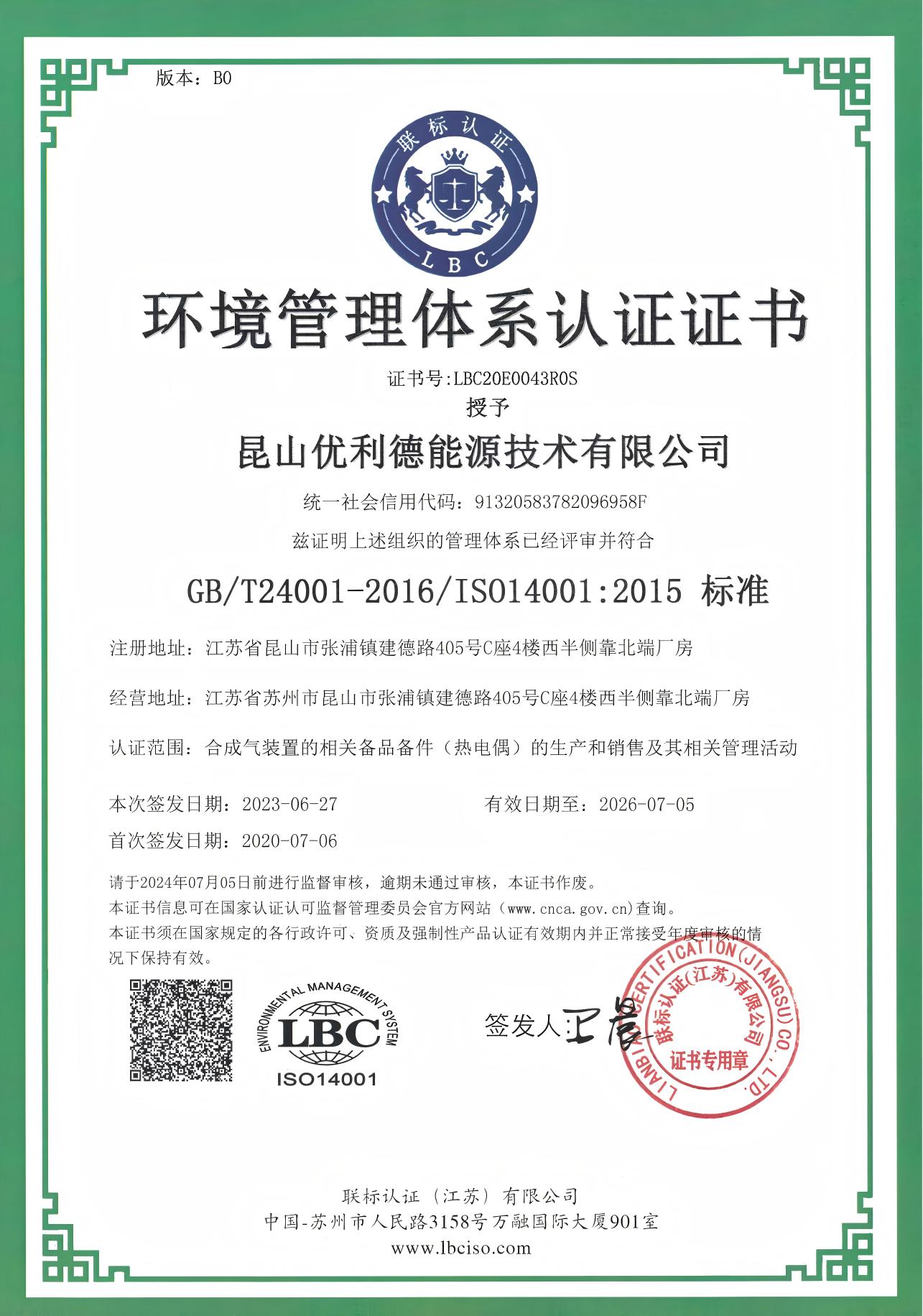

环境管理体系认证证书
Environmental Management System Certificate

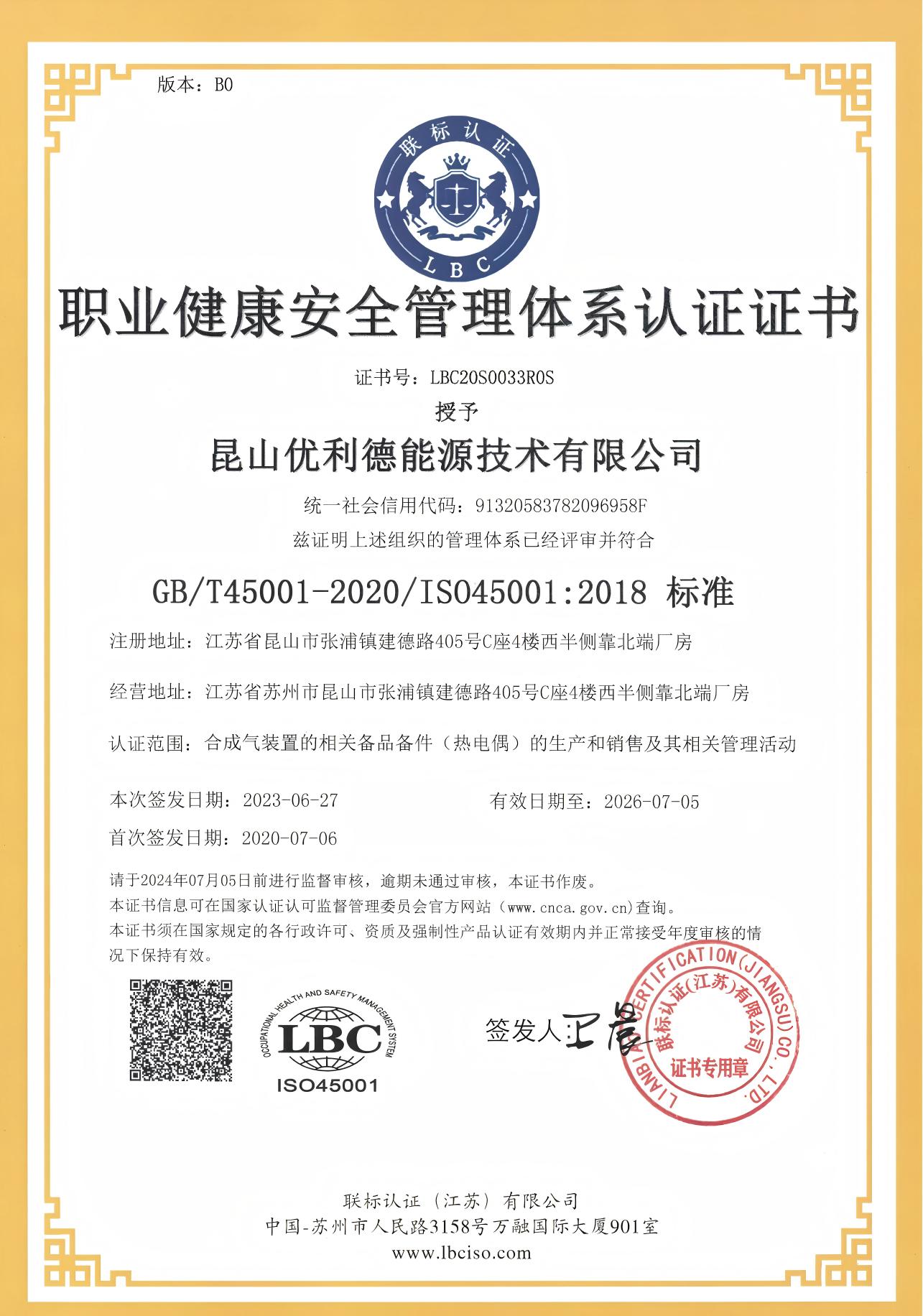

职业健康安全管理体系认证证书
Occupational Health and Safety Management System Certificate

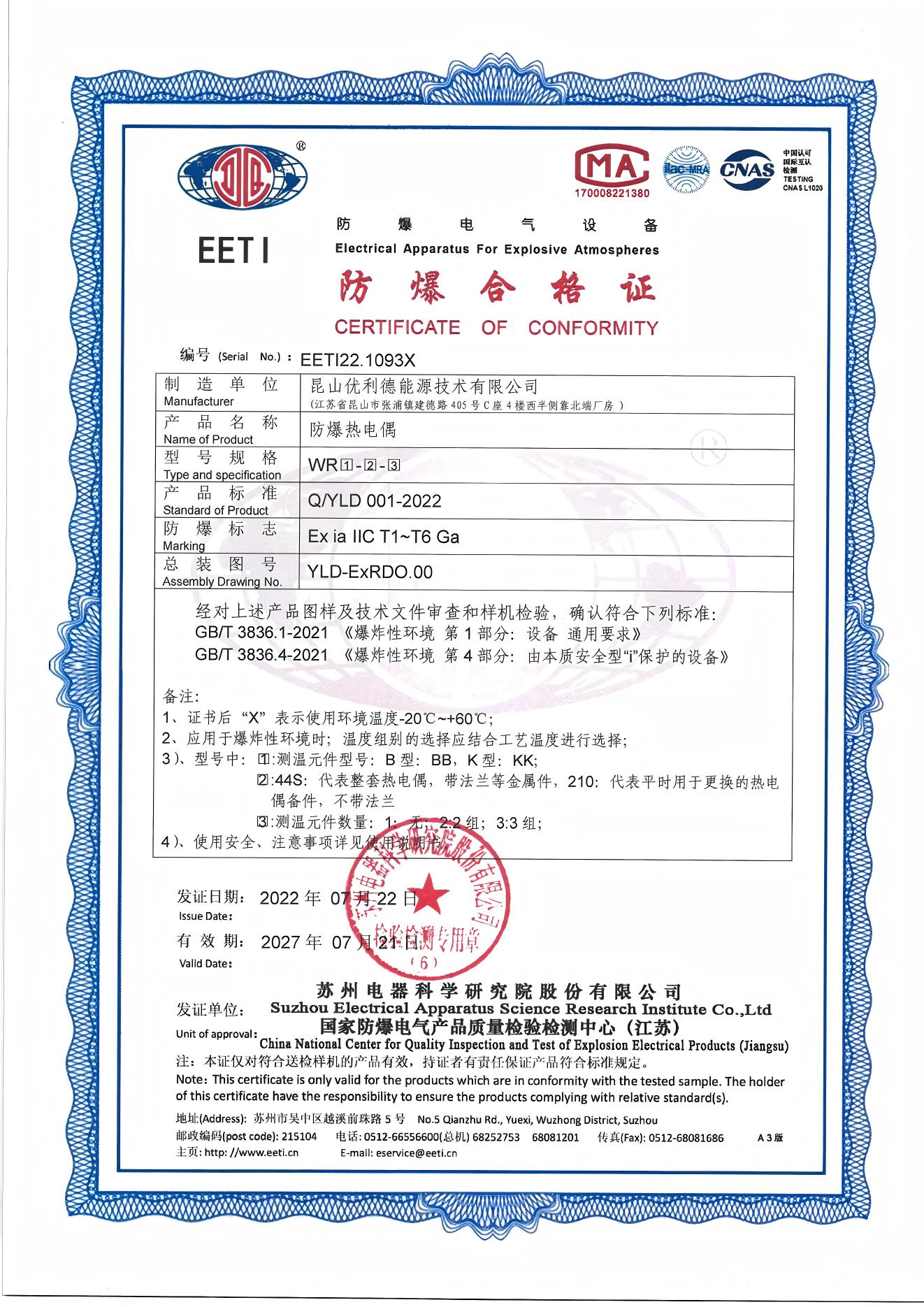

防爆合格证
Electrical Apparatus For Explosive Atmospheres

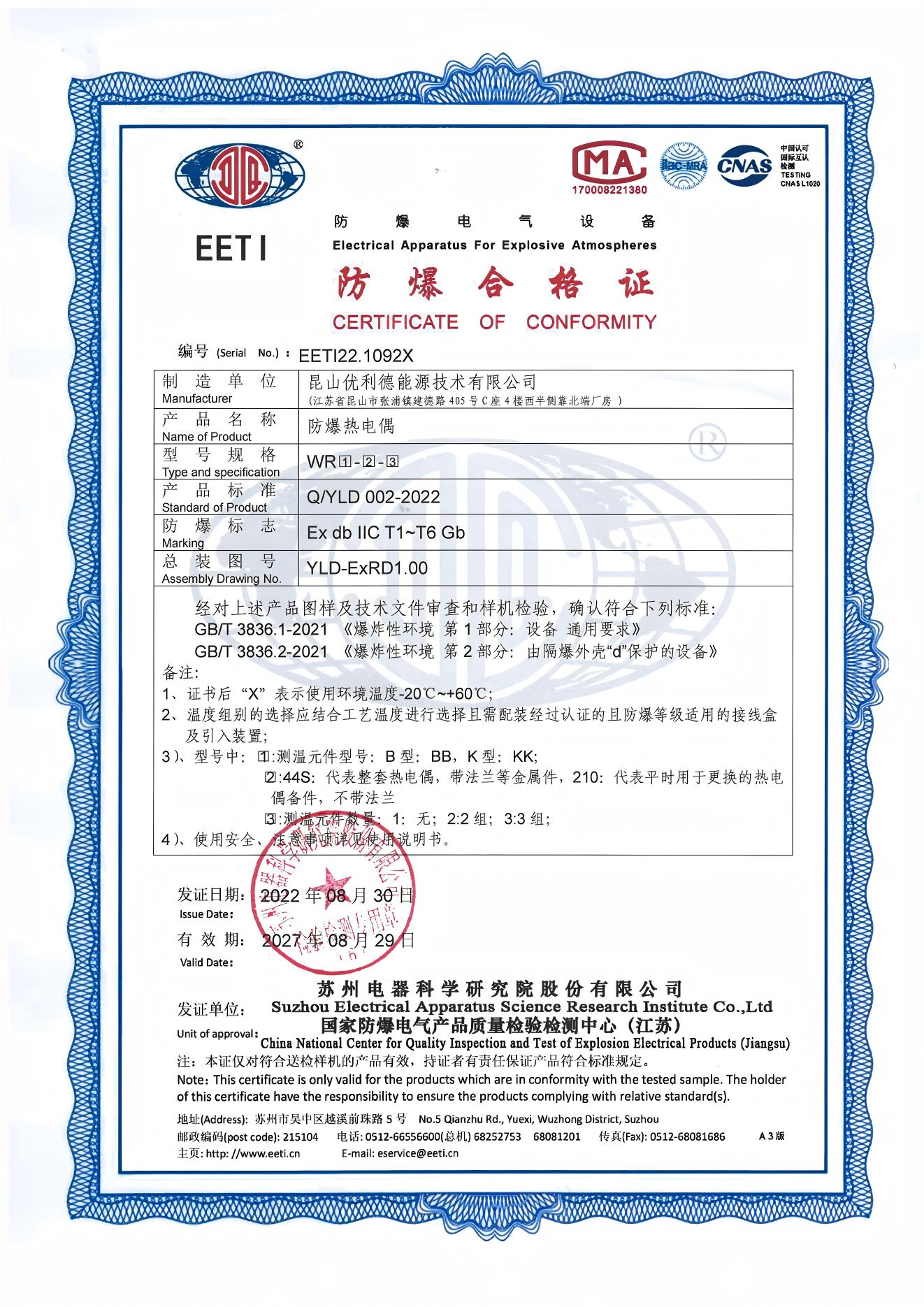

防爆合格证
Electrical Apparatus For Explosive Atmospheres

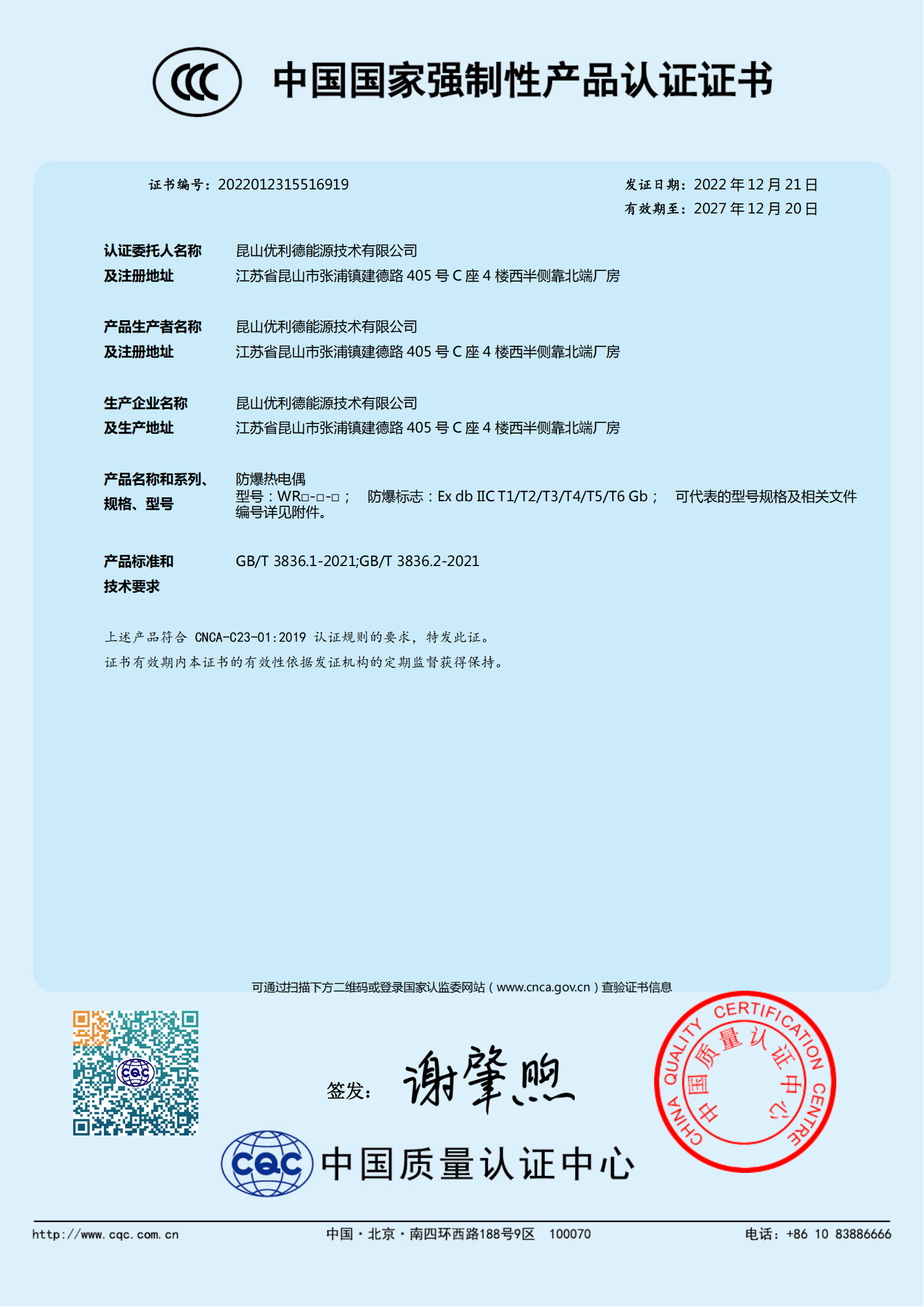

强制性产品认证证书
China Compulsory Certificate

强制性产品认证证书
China Compulsory Certificate

专利证书
Patent Certificate

专利证书
Patent Certificate
